Marine & Land Fire Fighting Foam Bladder Tank Water Foam Equipment for Closed Fire Sprinkler System

Marine & Land Fire Fighting Foam Bladder Tank Water Foam Equipment for Closed Fire Sprinkler System
Features Gallery Product Description Request A Quote
Features
Specifications
Dry Alarm Valve Type: Differential Type
Wet Alarm Valve Structure: Pilot Valve Type
Alarm Valve Diameter: 50mm
Nozzle Flow Coefficient: 80
Deluge Valve Type: Lever Type
Sprinkler Installation: Upright
Sprinkler Head Type: Open
Alarm Valve Type: Wet Alarm Valve
Automatically Opened And Closed Repeatedly: Can Automatically Opened And Closed
Open Fire Sprinkler System Type: Deluge System
Closed Fire Sprinkler System: Wet Fire Sprinkler System
Samples: US$ 100/Piece 1 Piece(Min.Order) | Request Sa
Customization: Available | Customized Request
Basic Infomation
Payment & Shipping Terms
Product Description
Foam baldder tanks can be formed to high, medium and low expansion foam extinguishing system with high and medium and low expansion foam generator, air foam spray gun and so on. The system is widely used in foam fire extinguishing system, such as chemical industrial enterprises, port and dock, large oil storage, airport oil storage, oil or fuel power plants, boiler room, dangerous goods storage, chemical warehouses and so on.
Foam bladder tanks is made from tank, bladder, pressure-type proportioner, safety valves, control valves, level gauge and a lot of ancillary components. Pressed water is divided into two parts according to a certain ratio(1: 99 or 3: 97 or 6: 94), 99%(97% or 94%) of the pressed water flow to the Proportioner, and 1%(3% or 6%) of the pressed water flow to the interlayer between tank and bladder, the water in interlayer will push foam concentrate in bladder into Proportioner. Foam concentrate will be injected into pressed water that flows through the proportioner and form foam solution, then the foam solution will flow to foam producing equipment, such as foam chamber and so on. Finally, air-foam concentrate is applied to put out fire.
The foam concentrate in the bladder can be used next time because it doesn't contact with water.
Type of Proportioner: 1%, 3%, 6%.



Product Parameters


Model volume(m3) Max. flow rate (L/S) Inner diameter of tank (mm) Working Pressure (MPa) Mixing ratio Inner diameter of solution pipe(DN mm)
PHYM-8-5 0.5 4--8 800 0.6-1.2 1%, 3% or 6% 50/65
PHYM-8-10 1 1000 50/65
PHYM-32-10 1 4--32 1000 50/65
PHYM-32-20 2 1200 100/150
PHYM-32-30 3 1400
PHYM-80-30 3 32--64--80 1400
PHYM-80-40 4 1600
PHYM-80-50 5 1600
PHYM-80-60 6 1800
PHYM-80-70 7 1800
PHYM-80-76 7.6 1800
PHYM-80-80 8 1800
PHYM-80-90 9 2000
PHYM-80-100 10 2000
PHYM-80-120 12 2200
PHYM-80-150 15 2200

Detailed Photos

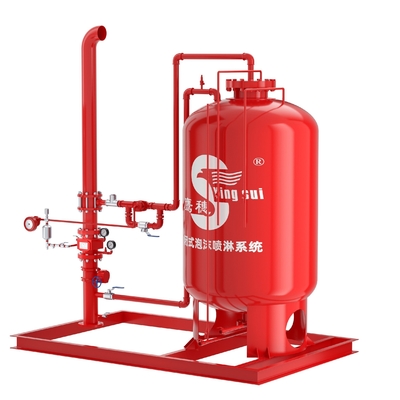

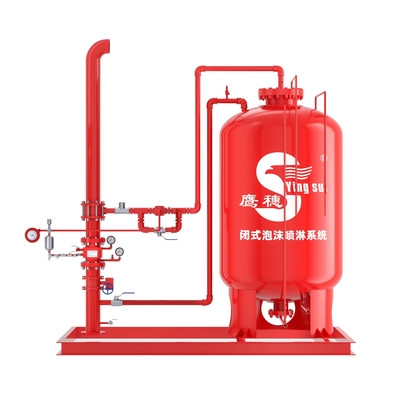

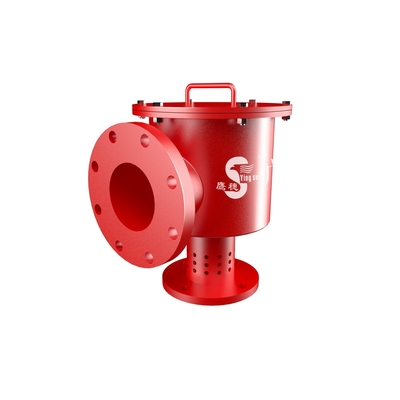

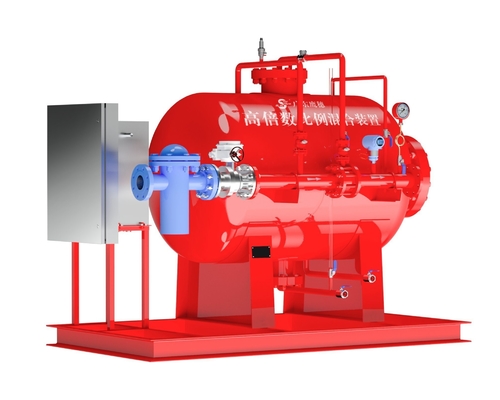

Marine & Land Fire Fighting Foam Bladder Tank Water Foam Equipment for Closed Fire Sprinkler System 0Marine & Land Fire Fighting Foam Bladder Tank Water Foam Equipment for Closed Fire Sprinkler System 1Marine & Land Fire Fighting Foam Bladder Tank Water Foam Equipment for Closed Fire Sprinkler System 2Marine & Land Fire Fighting Foam Bladder Tank Water Foam Equipment for Closed Fire Sprinkler System 3
