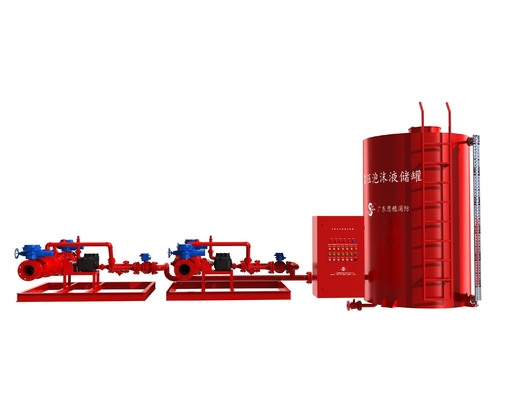

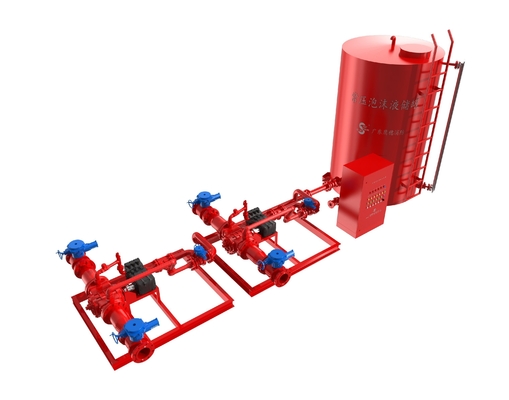

Marine & Land Mechanically Pumped Type Foam Proportioning Equipment

Marine & Land Mechanically Pumped Type Foam Proportioning Equipment
Features Gallery Product Description Request A Quote
Features
Specifications
Model NO.: PHP43/100/175/200/420
Specification: Skid Packing
Trademark: Yingsui
Origin: China
HS Code: 84241000
Supply Ability: 100 Sets/Year
Proportioning: 3% Or 6%
Working Pressure: 0.6-1.6MPa
Pressure Loss: No More Than 0.2MPa
Flow Rate: 43/100/175/200/420L/S
Inlet Outlet Pipeline: DN100/200/250/350
Transport Package: Wooden Packing
Customization: Available | Customized Request
Basic Infomation
Payment & Shipping Terms
Product Description
Dosing system for firefighting - for fixed installations connected to a concentrate tank with gravity feed to admixture pump. Consists mainly of two volumetric parts; a Water motor and a Piston/Plunger pump. Equipped with a Manual air relief valve. Flushing of admixture pump is done automatically when the concentrate inlet is closed with 3-way ball valve.

Model No. PHP43(3%)-S/C PHP100(3%) PHP100(6%) PHP175(3%) PHP200(3%) PHP420(3%)
Working Pressure (Mpa) 0.6-1.2 0.6-1.5 0.6-1.6
Pressure Loss (Mpa) ≤0.2 ≤0.3 ≤0.2
Proportioning 3% 6% 3%
Rated Flow Rate(L/S) 43 100 100 175 200 420
Flow Rate(L/S) 12-43 14-100 16-100 100-175 36-200 40-420
Inlet Outlet Pipeline DN100 DN200 DN250 DN350
Foam Inlet Pipeline DN40 DN80 DN100
Weight (Kg) 600 800 800 1050 1200 1500
