Features Gallery Product Description Request A Quote

Features

Specifications

Model NO.: PY3/300(3%)-G-H

Expansion Ratio: 642~730

Frothing Volume: 106.3~149.4m³/H

Durable Time: >=25min

Transport Package: Wooden Package

Specification: PY3/300(3%)-G-H

Trademark: Ying Sui

Origin: China

Rated Working Pressure: 0.8MPa

Pressure Range: 0.6~1.0MPa

Rated Flow: 3L/S

Volume: 300L

Effective Discharge Time: >=40min

Flow Coefficient: 63.6

Samples: US$ 100/Piece 1 Piece(Min.Order) | Request Sa

Customization: Available | Customized Request

Basic Infomation

Payment & Shipping Terms

Gallery

Fire Foam System Movable High Expansion Foam Generator Effective Discharge Time 40min

Product Description

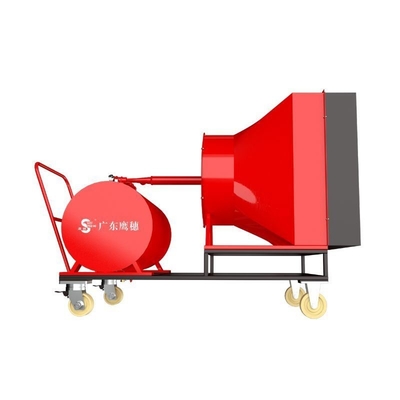

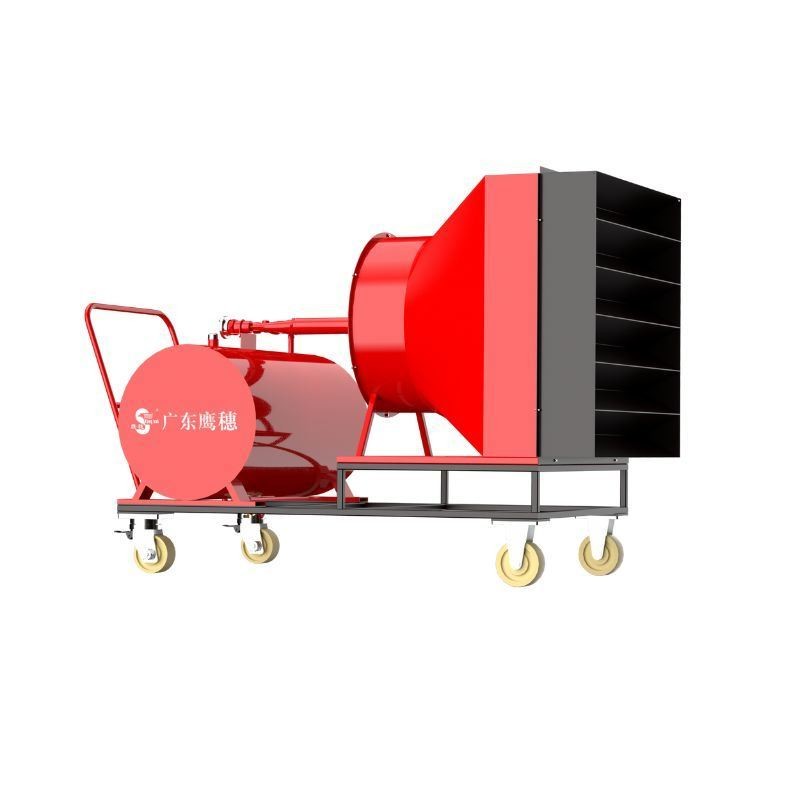

Fire Foam System Movable High expansion foam generator for fire protection
The high expansion foam forming equipment is a key component of generating and spraying foam in the high expansion foam extinguishing system. It can mix the foam mixture with air in a short time to form a large amount of foam, which can quickly cover the fire area and isolate it from the air, so as to achieve the purpose of fire extinguishing. High multiple foam water consumption is very little, water damage loss is less, can effectively eliminate smoke and gas, suitable for full or partial flooding fire extinguishing in limited space. It is suitable for warehouse, garage, liquefied gas station, liquid collecting tank, chemical workshop, passenger and cargo ship, large coal yard, large garbage yard, etc.

Item	PY3/300 (3%-G-H	PY3/400 (3%-G-H	PY3/500 (3%-G-H	PY4/300 (3%-G-H	PY4/400 (3%-G-H	PY4/500 (3%-G-H	PY6/300 (3%-G-H	PY6/400 (3%-G-H	PY6/500 (3%-G-H
Rated working pressure (MPa)	0.8
Pressure range (MPa)	0.6-1.0
Rated flow (L/s)	3			4			6
Volume (L)	300	400	500	300	400	500	300	400	500
Effective discharge time (min)	≥40min	≥50min	≥65min	≥30min	≥40min	≥50min	≥21min	≥30min	≥36min
Flow coefficient	63.6			84.9			127.3
Expansion ratio	642~730			614~722			512~548
Frothing volume (m3/h)	106.3~149.4			132.6~193.6			175.9~204.3
50% Durable time	≥25min			≥25min			≥25min

Company Profile

Fire Foam System Movable High Expansion Foam Generator for Fire Protection

Successful Cases
Fire Foam System Movable High Expansion Foam Generator for Fire Protection

Trade Capacity
International Commercial Terms(Incoterms):EXW,FOB, CIF, CFR
Terms of Payment: L/C, T/T
Average Lead Time:
Peak Season Lead Time: one month,
Off Season Lead Time: within 15 workdays
Number of Foreign Trading Staff: 4
Export Percentage: 30%
Main Markets: Southeast Asia

Production Capacity
Factory Address:Jubao Industrial Zone, Qingyuan, Guangdong, China
R&D Capacity:Own Brand, ODM, OEM
No. of R&D Staff: 15
No. of Production Lines:6
Annual Output Value:US$10 -20m

FAQ
Q:Are you a factory or trading company?
A:We are a professional manufacturer. We warmly welcome clients from worldwide to visit our factory and cooperate with us. We can offer OEM & ODM service.

Q:Can you produce goods with special specification?
A:Our company focuses on customized products. First of all, we need to know the specification in details, and then we need to check with our technology department. We will give customers satisfying reply as soon as possible.

Q:How long is the delivery time?
A:45-60 days after the advance payment.

Q:What's your advantage?
A: Independent R&D team, professional production and sales team, great production capacity sustainable supply. Use the best material and production process. Low defective rate.

Q:How can we guarantee quality?
A:Always a pre-production sample before mass production; Always final Inspection before shipment.

Q:Could you supply the samples?
A:Free samples always ready if the value is within our purview.

Q:Can you add some logo on the products?
A:Yes. We could OEM and design your logo.

Q:Are you able to design or explore a new products for us?
A:Yes, we are able to, if the clients could supply the drawings or samples.

Q:How about delivery ?
A:We can send to you by sea/air/express according to you, usually deliver within 7-10 working days after receive deposit.
