Features

Specifications

Model NO.: PHYM80/10

Power Source: Pressure Fire Extinguisher

Pressure Range: 0.4-1.6MPa

Pressure Loss: ≤0.15MPa

Rated Flow: 80L/S

Flow Range: 2~80L/S

Inlet And Outlet Pipe Diameter: DN150

Volume: 1.0m³

Weight: 450kg

Transport Package: Wooden Package

Specification: PHYM80/10

Trademark: Ying Sui

Origin: China

Agent: Foam

Type: Fire Extinguisher

Object: Class B Fires

Size: Phym80/10

Certification: CCC, CE

Portable Extinguisher: Balanced Pressure Foam Proportioning Equipment

Samples: US$ 100/Piece 1 Piece(Min.Order) | Request Sa

Customization: Available | Customized Request

Basic Infomation

Payment & Shipping Terms

Gallery

Automatic Proportioning Balanced Pressure Foam Proportioner for Portable Extinguisher

Product Description

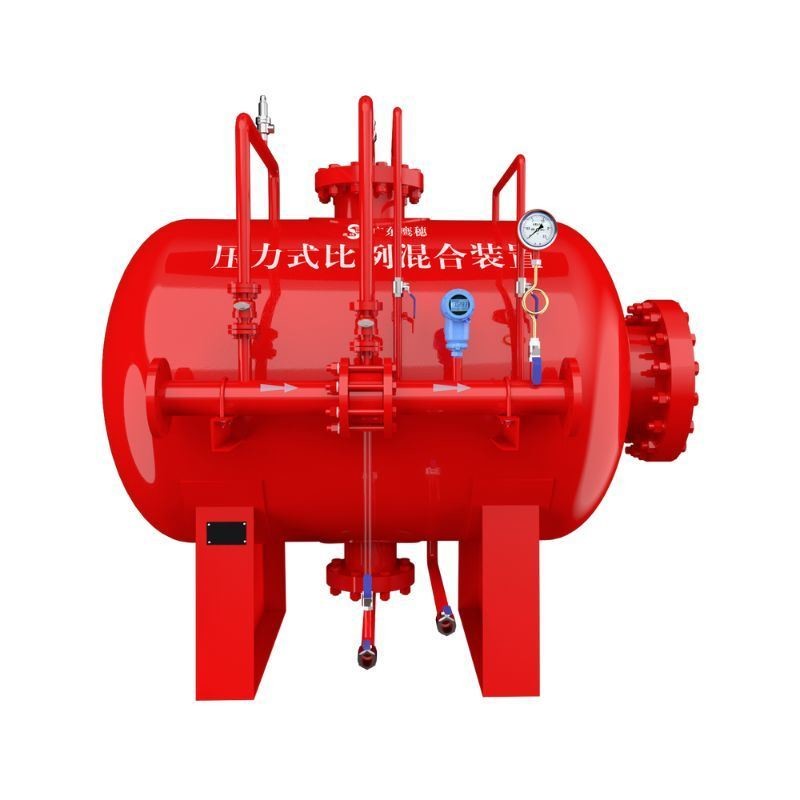

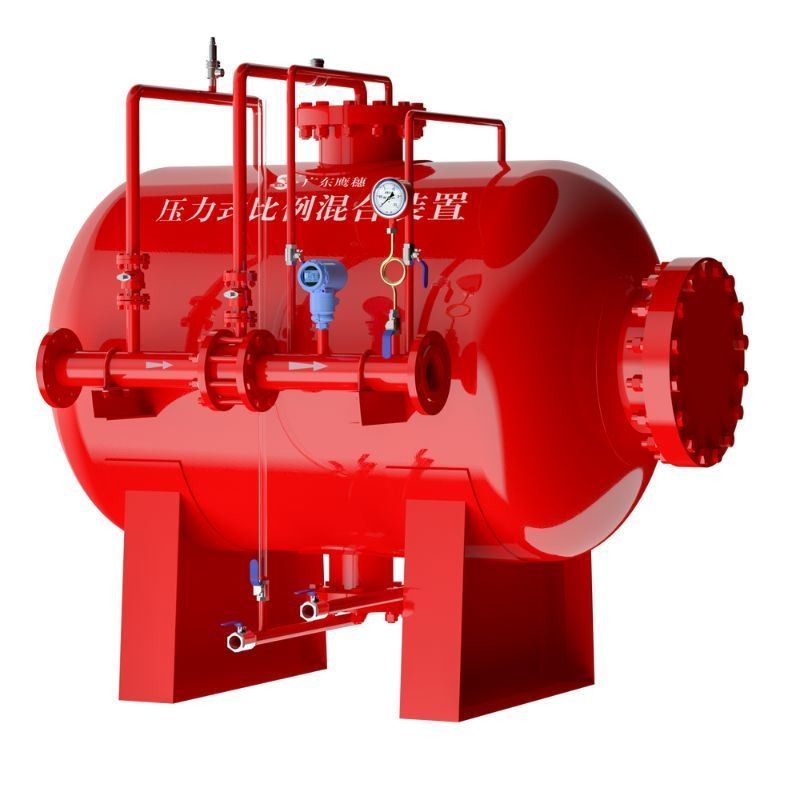

Carbon Steel Pressure Type Automatic Proportioning Balanced pressure foam proportioner
The pressure foam proportioner is composed of capsule, pressure tank and foam proportioner based on Venturi principle. The water in the pipe network forms the foam mixture at a ratio of 3% or 6% through the proportional mixer, which is transported to the foam generating equipment after inhaling air to form foam to extinguish the fire.
The equipment is widely used in high, medium and low power foam fire extinguishing system. It is characterized by the ability to mix water and foam extinguishing agent in a stable proportion in a wide flow and pressure range. The equipment is a combination of storage tank and proportional mixer, which is easy to install and operate.

Item	PHYM40/10	PHYM40/20	PHYM32/60		PHYM80/76		PHYM24/10		PHYM40/20		PHYM40/30		PHYM40/40	PHYM80/10		PHYM80/20			PHYM80/30	PHYM80/40		PHYM80/50			PHYM100/60		PHYM100/80	PHYM100/100		PHYML24/10			PHYML40/15		PHYML32/10	PHYML32/15		PHYML64/20	PHYML90/40
Pressure range (MPa)	0.6~1.2														0.4-1.6													0.6-1.2
Pressure loss (MPa)	≤0.15
Mixture ratio	3%								6%											3%												6%
Rated flow (L/s)	40		32			80			24						40		80			100				24				40				32			64			90
Flow range (L/s)	24~40			24~80			2~24				2~40				2~80			2~100			2~24					2~40			16~32					16~64			32~90
Inlet and outlet pipe diameter	DN100								DN150											DN100												DN150
Volume (m3)	1.0	2.0	6.0	7.6		1.0		2.0		3.0		4.0		1.0	2.0		3.0		4.0	5.0			6.0		8.0		10.0	1.0			1.5		1.0		1.5	2.0		4.0
Weight (Kg)	450	650	1200	1400		450		650		750		950		450	650		750		950	1100			1200		1500		1750	400			500		400		500	560		750
