Features

Specifications

Model NO.: ZFP500/1000/2000/3000

Power Source: Gas Fire Extinguisher

Supercharging Time: ≤20s

Spraying Time: >=60s

Residual Powder Ratio: ≤10%

Operating Temperature Range: -20~+50ºC

System Boot Mode: Automatic, Manual, Mechanical Emergency

Dry Powder Tank Volume: 3.5m³

Dry Powder Tank Design Pressure: 1.6MPa

Dry Powder Tank Working Pressure: 1.55MPa

Transport Package: Wooden Package

Specification: ≤ 2380kg

Trademark: Ying Sui

Origin: China

Agent: Dry Powder

Type: Fire Extinguisher

Object: Class D Fires

Size: ≤2380kg

Certification: CCC, CE

Portable Extinguisher: Dry Powder Fire Extinguishing System

Samples: US$ 100/Piece 1 Piece(Min.Order) | Request Sa

Customization: Available | Customized Request

Basic Infomation

Payment & Shipping Terms

Gallery

Gas Fire Extinguisher Power Source Local Fixed Dry Powder Fire Extinguishing System

Product Description

Local Application Fire Extinguishing Fixed Dry Powder Fire Extinguishing System
Class D dry powder fire extinguishing system is a kind of automatic fire extinguishing system with pipe network, which is suitable for all submerged fire extinguishing and local application fire extinguishing. After connecting with the fire alarm system, it can be used in a single set or in combination with multiple sets.
It has the advantages of quick and efficient fire extinguishing, safe and simple post-fire treatment, non-toxic and pollution-free to the environment, good and unique adsorption and decomposition characteristics, unique ignition and detonation characteristics, etc.

Item		ZFP500	ZFP1000		ZFP2000		ZFP3000
Dry powder filling amount(Kg)		≤510	≤952		≤1496		≤2380
Fire class		D
Supercharging time(s)		≤20
Spraying time(s)		≥60
Residual powder ratio		≤10%
Operating temperature range(ºC)		-20~+50
System boot mode		Automatic, manual, mechanical emergency
Dry powder tank	Volume(m3)	0.75	1.4		2.2		3.5
	Design pressure(MPa)	1.6		1.8		1.6
	Working pressure(MPa)	1.5		1.6		1.55
Expellant gas cylinder	Gas type	N2
	Volume(L)	70
	Number of cylinders	2	4		9		13
	Filling pressure (+20ºC)MPa	13.5
Starting cylinder	Gas type	N2
	Volume(L)	8
	Filling pressure (+20ºC)MPa	6.0

Company Profile

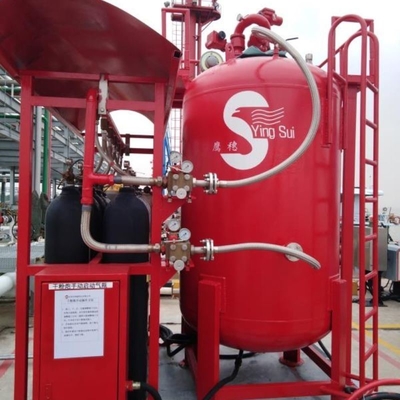

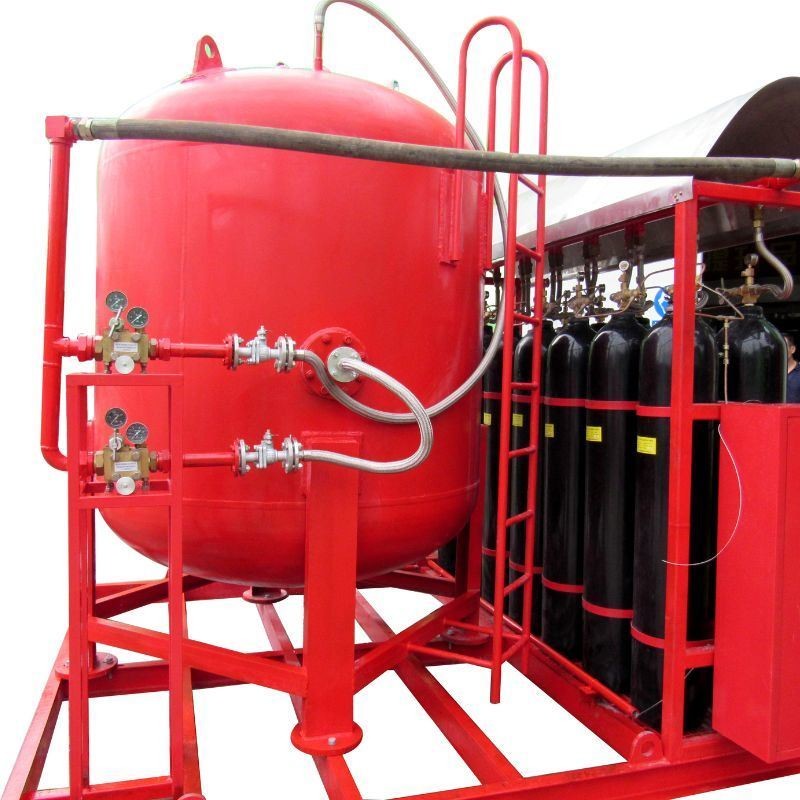

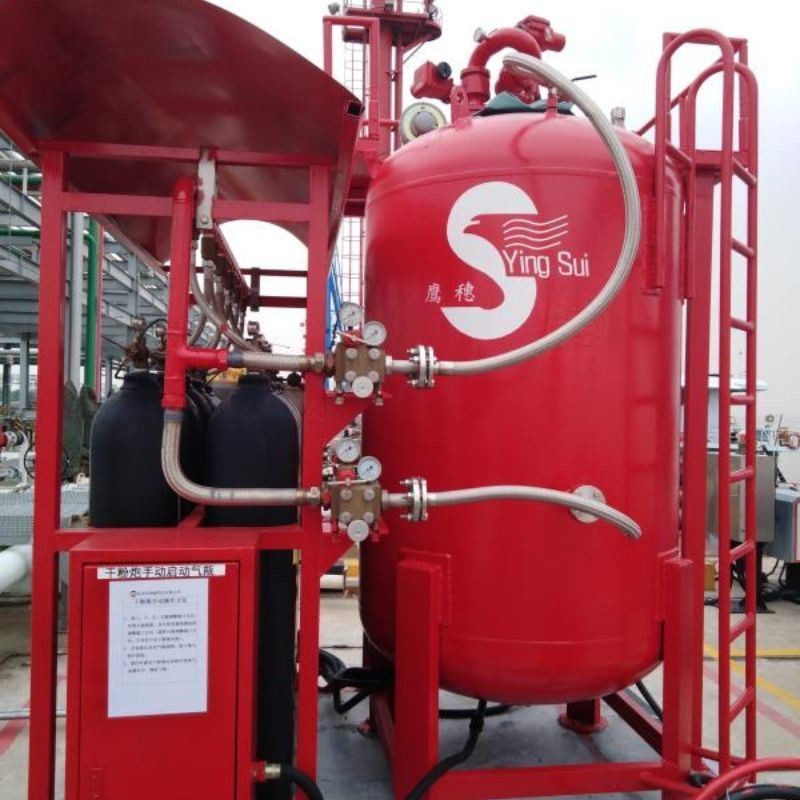

Successful Cases
Local Application Fire Extinguishing Fixed Dry Powder Fire Extinguishing System

Trade Capacity
International Commercial Terms(Incoterms):EXW,FOB, CIF, CFR
Terms of Payment: L/C, T/T
Average Lead Time:
Peak Season Lead Time: one month,
Off Season Lead Time: within 15 workdays
Number of Foreign Trading Staff: 4
Export Percentage: 30%
Main Markets: Southeast Asia

Production Capacity
Factory Address:Jubao Industrial Zone, Qingyuan, Guangdong, China
R&D Capacity:Own Brand, ODM, OEM
No. of R&D Staff: 15
No. of Production Lines:6
Annual Output Value:US$10 -20m

FAQ
Q:Are you a factory or trading company?
A:We are a professional manufacturer. We warmly welcome clients from worldwide to visit our factory and cooperate with us. We can offer OEM & ODM service.

Q:Can you produce goods with special specification?
A:Our company focuses on customized products. First of all, we need to know the specification in details, and then we need to check with our technology department. We will give customers satisfying reply as soon as possible.

Q:How long is the delivery time?
A:45-60 days after the advance payment.

Q:What's your advantage?
A: Independent R&D team, professional production and sales team, great production capacity sustainable supply. Use the best material and production process. Low defective rate.

Q:How can we guarantee quality?
A:Always a pre-production sample before mass production; Always final Inspection before shipment.

Q:Could you supply the samples?
A:Free samples always ready if the value is within our purview.

Q:Can you add some logo on the products?
A:Yes. We could OEM and design your logo.

Q:Are you able to design or explore a new products for us?
A:Yes, we are able to, if the clients could supply the drawings or samples.

Q:How about delivery ?
A:We can send to you by sea/air/express according to you, usually deliver within 7-10 working days after receive deposit.
