Features

Specifications

Model NO.: ZFP500/1000/2000/3000

Power Source: Gas Fire Extinguisher

Supercharging Time: ≤20s

Spraying Time: >=60s

Residual Powder Ratio: ≤10%

Operating Temperature Range: -20~+50ºC

System Boot Mode: Automatic, Manual, Mechanical Emergency

Dry Powder Tank Volume: 0.75m³

Dry Powder Tank Design Pressure: 1.6MPa

Dry Powder Tank Working Pressure: 1.5MPa

Transport Package: Wooden Package

Specification: ≤ 510kg

Trademark: Ying Sui

Origin: China

Agent: Dry Powder

Type: Fire Extinguisher

Object: Class D Fires

Size: ≤ 510kg

Certification: CCC, CE

Portable Extinguisher: Dry Powder Fire Extinguishing System

Samples: US$ 100/Piece 1 Piece(Min.Order) | Request Sa

Customization: Available | Customized Request

Basic Infomation

Payment & Shipping Terms

Gallery

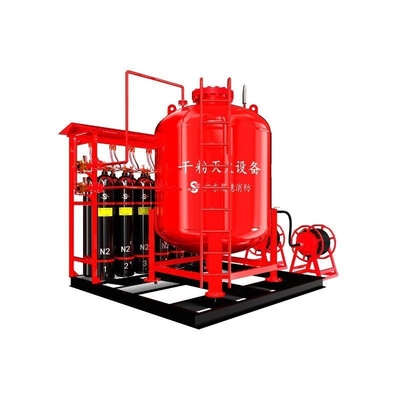

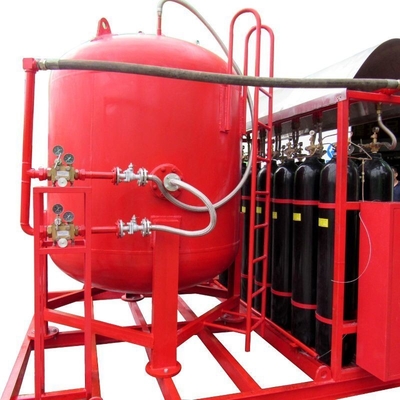

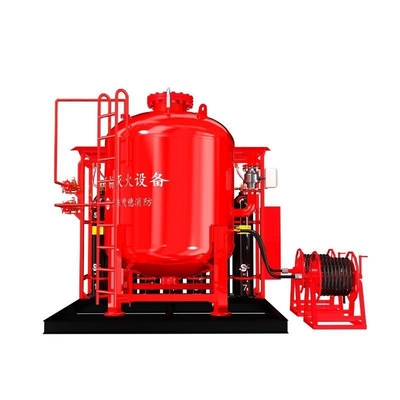

Automatic Class D Fires Fixed Dry Powder Fire Extinguishing System for Fire Protection

Product Description

Automatic Class D Fires Fixed Dry Powder Fire Extinguishing System
Class D dry powder fire extinguishing system is a kind of automatic fire extinguishing system with pipe network, which is suitable for all submerged fire extinguishing and local application fire extinguishing. After connecting with the fire alarm system, it can be used in a single set or in combination with multiple sets.
It has the advantages of quick and efficient fire extinguishing, safe and simple post-fire treatment, non-toxic and pollution-free to the environment, good and unique adsorption and decomposition characteristics, unique ignition and detonation characteristics, etc.

Item		ZFP500	ZFP1000		ZFP2000		ZFP3000
Dry powder filling amount(Kg)		≤510	≤952		≤1496		≤2380
Fire class		D
Supercharging time(s)		≤20
Spraying time(s)		≥60
Residual powder ratio		≤10%
Operating temperature range(ºC)		-20~+50
System boot mode		Automatic, manual, mechanical emergency
Dry powder tank	Volume(m3)	0.75	1.4		2.2		3.5
	Design pressure(MPa)	1.6		1.8		1.6
	Working pressure(MPa)	1.5		1.6		1.55
Expellant gas cylinder	Gas type	N2
	Volume(L)	70
	Number of cylinders	2	4		9		13
	Filling pressure (+20ºC)MPa	13.5
Starting cylinder	Gas type	N2
	Volume(L)	8
	Filling pressure (+20ºC)MPa	6.0

Company Profile

Automatic Class D Fires Fixed Dry Powder Fire Extinguishing System

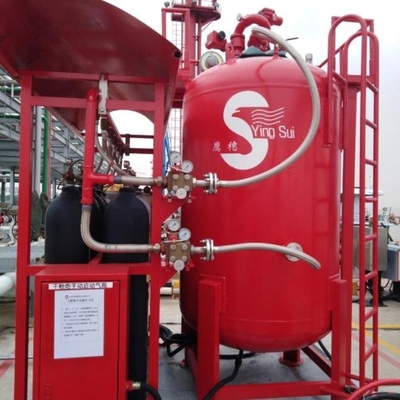

Successful Cases
