Features

Specifications

Model NO.: QMQ4.2/70N/90N/120N/150N/180N

Power Source: Gas Fire Extinguisher

Operating Temperature Range: -10~+50ºC

Filling Capacity Of Extinguishing Agent: 950kg/M³

Actuator Cylinder Specification: 8L

Storage Pressure Of Actuator Cylinder: 6.0MPa

Working Voltage: DC24

Working Current: 1.5A

Spraying Time: ≤10s

Starting Method: Automatic, Manual, Mechanical Emergency

System Type: Unit Independent, Combination Distribution

Transport Package: Wooden Package

Specification: 4.2MPa 90L

Trademark: Ying Sui

Origin: China

HS Code: 8705309000

Supply Ability: 1200pieces/Year

Agent: Hfc-227ea

Type: Fire Extinguisher

Object: Class A/B Fires

Size: 4.2MPa 90L

Certification: CCC, CE

Portable Extinguisher: Hfc-227ea Gas Fire Extinguishing System

Samples: US$ 100/Piece 1 Piece(Min.Order) | Request Sa

Customization: Available | Customized Request

Basic Infomation

Payment & Shipping Terms

Gallery

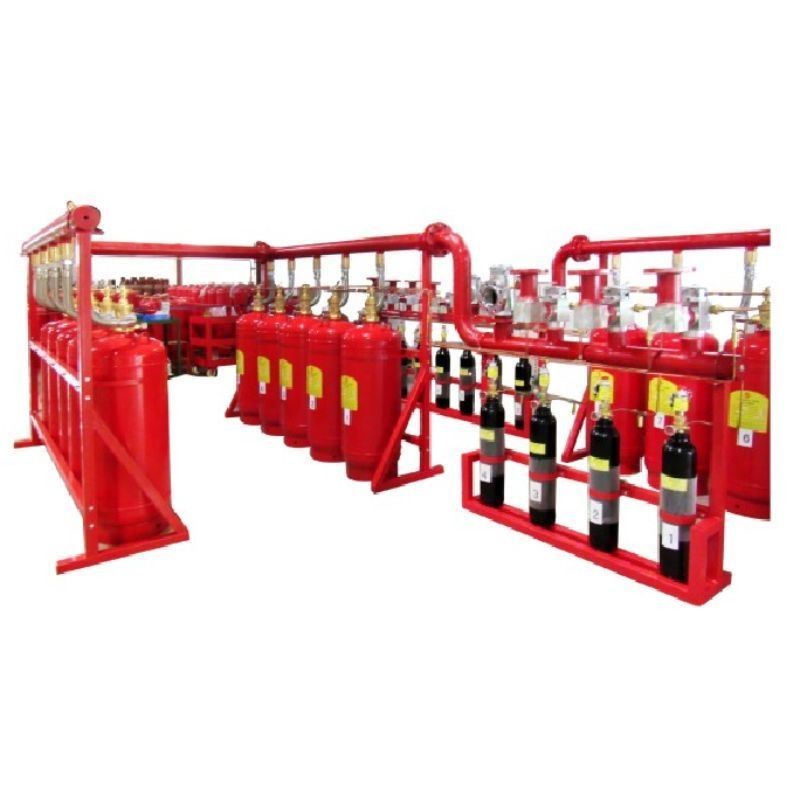

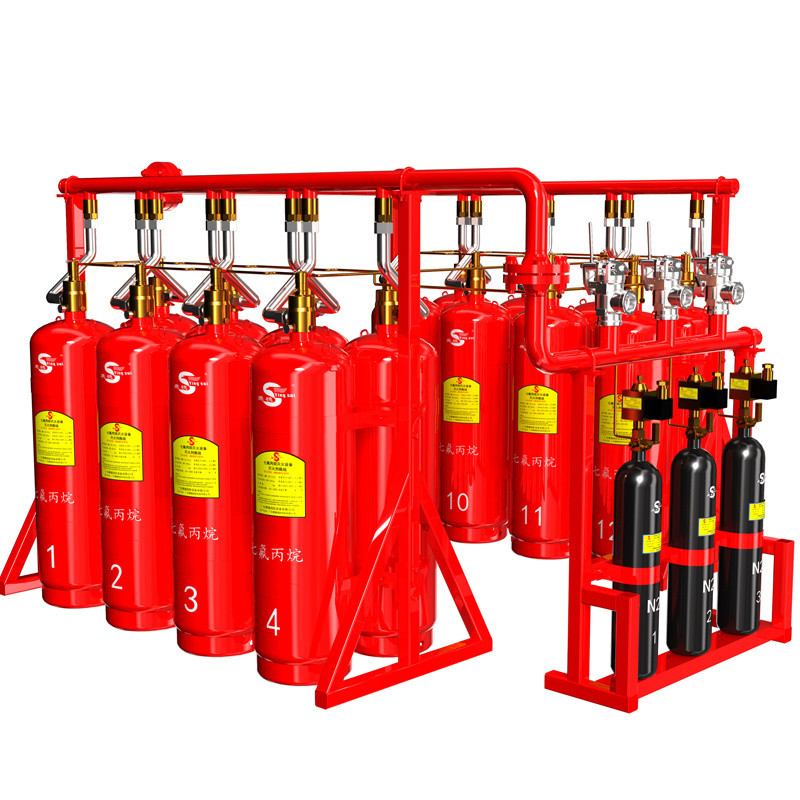

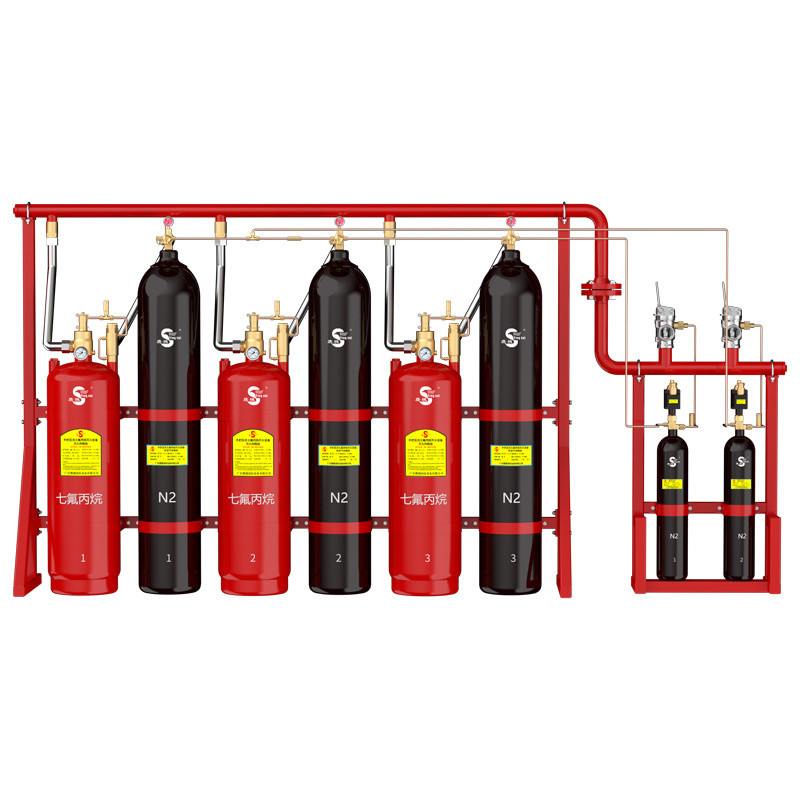

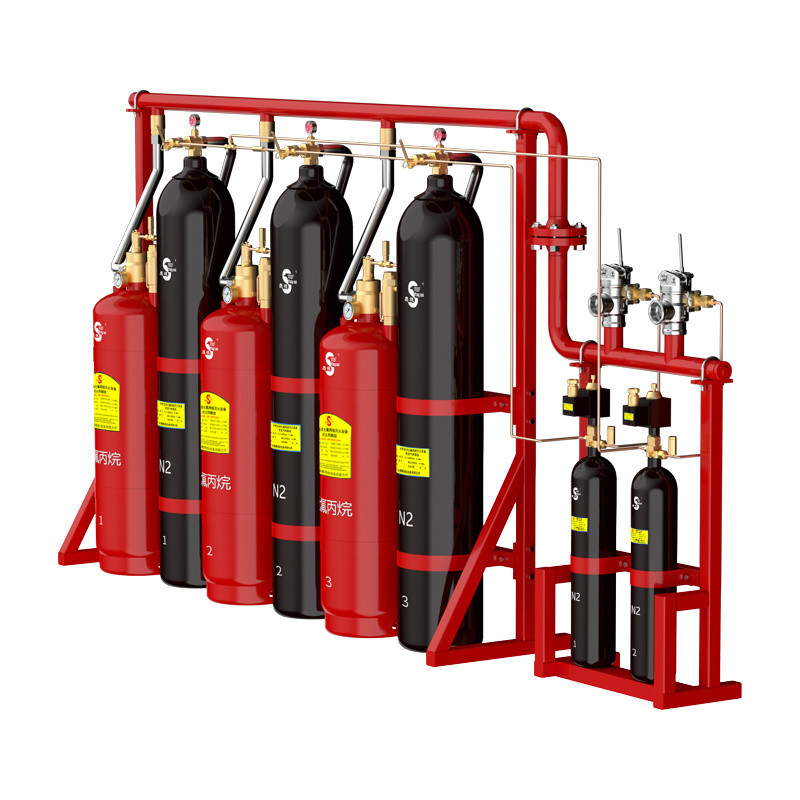

Best Sale Customized 90L FM200 Gas Suppression System for Fire Protection

Product Description

Best Sale Customized 90L FM200 Gas Suppression System for Fire Protection

HFC-227ea is a kind of colorless, tasteless, non-conducting gas fire extinguishing agent at normal temperature, which can be liquefied and stored at low pressure. Its density is about 6 times that of air. Its molecular formula is CF3CHFCF3, its brand name is HFC-227EA, and it is called FM-200 abroad. When the extinguishing agent is sprayed into the protected area, the extinguishing agent will decompose and produce active free radicals when it touches the flame or high temperature surface. The free radicals will capture the active substances generated in the combustion chain reaction, destroy the chain transmission in the combustion process, and finally achieve the purpose of fire extinguishing. This method belongs to chemical fire extinguishing, with little physical effects such as cooling, dilution or isolating the air. Because of its high fire extinguishing efficiency, no pollution to equipment, no damage to the atmospheric ozone layer and other advantages, it is currently the first choice to replace the alkyl halide fire extinguishing agent.

Item	QMQ4.2 /70N	QMQ4.2 /90N	QMQ4.2 /120N	QMQ4.2 /150N	QMQ4.2 /180N	QMQ5.6 /90N	QMQ5.6 /120N
Storage pressure of fire extinguishing agent cylinder assemblies (+20ºC)MPa	4.2					5.6
Maximum working pressure of fire extinguishing agent cylinder assemblies(+50ºC)MPa	5.3					8.0
Operating temperature range(ºC)	-10~+50
Fire extinguishing agent cylinder assemblies specifications (L)	70	90	120	150	180	90	120
Filling capacity of extinguishing agent (Kg/m3)	950					1080
Actuator cylinder specification(L)	8
Storage pressure of actuator cylinder(+20ºC)MPa	6.0
Maximum operating pressure of actuator cylinder (+20ºC)MPa	6.6
Working voltage(V)	DC24
Working current(A)	1.5A
Spraying time(S)	≤10
Starting method	Automatic, manual, mechanical emergency
System type	Unit independent, combination distribution

Applications And Hazards Protected By Argon Inert Gas Fire Suppression:

controarchives and libraries
civil and military marine

computer rooms

control rooms

data centers

educational institutions

electric and electronic applications

electrical switch rooms

financial centers and banks

floating roof tanks protection

egenerators

hospitals

hot process areas

laboratories

libraries

machinery spaces

mass transit

medical facilities

military installations

military storage centres

emilitary vehicles

mining facilities

museums and art galleries

nuclear facilities

offices

offshore platforms

oil & gas facilities

pharmaceutical industry

power plants

telecommunication centers

Features And Benefits From Argon Gas Fire Suppression System

Suitable for occupied areas
Electrically non - conductive
Chemically inert
Colourless, odourless and flavourless
No residue to clean up after the discharge
Zero Ozone Depletion Potential (ODP)
No greenhouse effect
No global warming impact
No decomposition products
No fog and no loss of post-discharge visibility
Non corrosive/toxic
Stored as a gas
Suitable for occupied areas
Excellent post-discharge visibility
Very low refill cost.
Easy to obtain anywhere in the world

Only agent approved for automatic use in manned environmentserators

In the event of discharge, the agent is cost effective to replace
No evacuation issues
Cylinders can be remote from the risk
Directional valve solutions to enable mutli-risks to be protected economically using single cylinder bank
Constant flow solution available, therefore reducing size of venting requirement
Large safety margin
Future proof - no risk of being banned
Economical installation costs
Zero Ozone Depletion Potential (ODP)
We simply borrow Nitrogen and Argon from nature.
When released, they automatically return to their natural place in the environment.
Zero Global Warming Potential (GWP)

Nitrogen and Argon have no atmospheric lifetime and zero GWP, so they pose no risk to the environment.
Weight Similar To Air
The weight of inert gas agents corresponds closely to that of normal air and will evacuate a protected area slower than halocarbon agents after a discharge.

No Combustion By-Products Inert gasses do not decompose into toxic or corrosive elements in a fire, making it a safe choice for people and assets.
No Fogging inert gas systems is ideal for occupied spaces because escape routes remain visible during, and after a discharge.
No Residue That means no damage to your equipment and no clean up required
Electrically Non-conductive It is electrically non-conductive and is therefore highly recommended for protecting electrical and electronic materials.

Minimal Thermal Shock When discharged, inert gasses cause the least amount of thermal shock (sudden temperature drop), compared to other clean agents.hospitals
