Features

Specifications

Model NO.: QMH15/70

Power Source: Gas Fire Extinguisher

Operating Temperature Range: -10~+50ºC

Filling Capacity Of Extinguishing Agent: 14.78kg

Actuator Cylinder Specification: 8L

Storage Pressure Of Actuator Cylinder: 6.0MPa

Working Voltage: DC24

Working Current: 1.5A

Spraying Time: ≤60s

Starting Method: Automatic, Manual, Mechanical Emergency

System Type: Unit Independent, Combination Distribution

Transport Package: Wooden Package

Specification: 15MPa 70L

Trademark: Ying Sui

Origin: China

HS Code: 8705309000

Supply Ability: 1200sets/Year

Agent: Nitrogen

Type: Ig541 Gas Extinguishing System

Object: Class A/B/C Fires

Size: 15MPa 70L

Certification: CCC, CE

Portable Extinguisher: Ig541 Gas Fire Extinguishing

Samples: US$ 100/Piece 1 Piece(Min.Order) | Request Sa

Customization: Available | Customized Request

Basic Infomation

Payment & Shipping Terms

Gallery

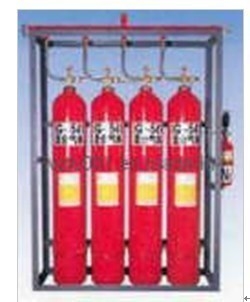

Mixed Gas (IG541) Fire Extinguishing System/Fire Suppression System - Ig541

Product Description

Mixed Gas (IG541) Fire Extinguishing System/Fire Suppression System - Ig541

IG541 mixed gas fire extinguishing agent is a "green" environmental protection gas fire extinguishing agent which can replace halon fire extinguishing agent and has been widely used in the world. It is made of nitrogen, argon and carbon dioxide in a certain proportion of completely natural combination, no damage to the atmospheric ozone layer, do not cause greenhouse effect, with colorless, tasteless, no pollution to equipments, non-corrosive, good insulation characteristics. After the fire extinguishing agent is sprayed into the protection area, the oxygen concentration decreases while the carbon dioxide concentration in the protection area increases. A moderate increase in the carbon dioxide concentration can accelerate the respiratory rate of human beings, improve the oxygen absorption function of human beings, and maintain the need of oxygen absorption of human beings to a certain extent. IG541 extinguishing agent is stored and sprayed in gaseous form. When it is released to the high temperature protection area of fire, it will not decompose, no toxic decomposition is produced, and it will not form fog or cause blurred vision, so as to ensure that personnel can clearly see the emergency exit when escaping. It is a kind of safe environmental protection gas fire extinguishing agent, suitable for the place where people often work.

Item	QMH15/70	QMH15/80	QMH15/90
Storage pressure of fire extinguishing agent cylinder assemblies (+20ºC)MPa	15
Maximum working pressure of fire extinguishing agent cylinder assemblies (+50ºC)MPa	17.2
Operating temperature range(ºC)	-10~+50
Fire extinguishing agent cylinder assemblies specifications (L)	70	80	90
Filling capacity of extinguishing agent (Kg)	14.78	16.89	19.0
Actuator cylinder specification(L)	8
Storage pressure of actuator cylinder(+20ºC)MPa	6.0
Maximum operating pressure of actuator cylinder (+20ºC)MPa	6.6
Working voltage(V)	DC24
Working current(A)	1.5A
Spraying time(S)	≤60
Starting method	Automatic, manual, mechanical emergency
System type	Unit independent, combination distribution

Mixed Gas (IG541) Fire Extinguishing System/Fire Suppression System - Ig541

Successful Cases
Trade Capacity
International Commercial Terms(Incoterms):EXW,FOB, CIF, CFR
Terms of Payment: L/C, T/T
Average Lead Time:
Peak Season Lead Time: one month,
Off Season Lead Time: within 15 workdays
Number of Foreign Trading Staff: 4
Export Percentage: 30%
Main Markets: Southeast Asia

Production Capacity
Factory Address:Jubao Industrial Zone, Qingyuan, Guangdong, China
R&D Capacity:Own Brand, ODM, OEM
No. of R&D Staff: 15
No. of Production Lines:6
Annual Output Value:US$10 -20m
